Building a deck is a popular home improvement project that enhances outdoor living space and adds value to your property. One of the critical aspects of deck construction is ensuring a stable foundation, and helical piles have become an increasingly preferred option. This step-by-step guide will walk you through the process of installing helical piles for your deck, providing you with the knowledge to undertake this task with confidence.
What are Helical Piles?
Helical piles, also known as screw piles, are steel shafts with helical (spiral) plates welded to them. These piles are driven into the ground using hydraulic machinery, creating a deep, stable foundation that is ideal for supporting structures like decks.
Benefits of Using Helical Piles
Before diving into the installation process, it’s important to understand the benefits of using helical piles for your deck:
- Stability and Strength: Helical piles provide excellent support, even in challenging soil conditions, ensuring your deck remains stable and secure.
- Quick Installation: Helical piles can be installed quickly, reducing the overall time needed for deck construction.
- Versatility: They are suitable for various soil types, including clay, sand, and silt, and can be used in both residential and commercial applications.
Tools and Materials Needed
Before starting the installation, gather the necessary tools and materials:
- Helical piles
- Hydraulic drive head (typically rented)
- Measuring tape
- Level
- String line and stakes
- Safety gear (gloves, goggles, and ear protection)
Step-by-Step Installation Process
Step 1: Site Preparation
Begin by preparing the site where the helical piles will be installed:
- Mark the Deck Layout: Use stakes and string to outline the perimeter of your deck. Ensure the lines are straight and the corners are square by measuring diagonally across the corners.
- Determine Pile Locations: Based on your deck design, mark the locations where the helical piles will be installed. Piles are typically placed at the corners, along the perimeter, and under load-bearing beams.
Step 2: Install Helical Piles
With the site prepared, you can begin installing the helical piles:

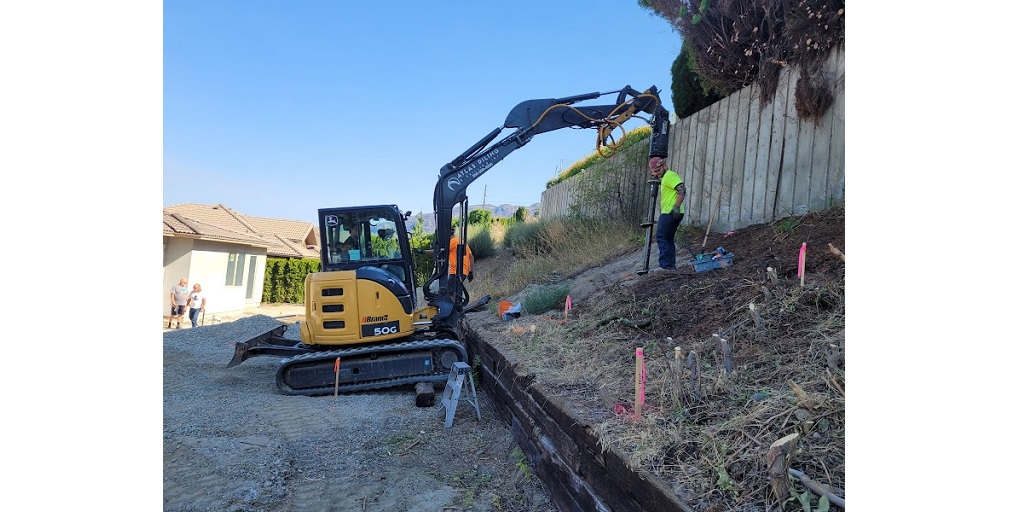

- Position the Drive Head: Attach the hydraulic drive head to the helical pile and position it over the marked location. Ensure the pile is vertical using a level.
- Drive the Pile: Activate the hydraulic drive to screw the pile into the ground. Continue driving until the pile reaches the desired depth and the required torque is achieved, indicating sufficient load-bearing capacity.
- Check Alignment: Throughout the process, regularly check the pile’s alignment to ensure it remains vertical. Adjust as necessary to maintain accuracy.
Step 3: Cut and Cap Piles
Once all the piles are installed, they need to be cut and capped to prepare for the deck structure:
- Cut Piles to Height: Using a metal-cutting saw, cut the tops of the helical piles to the desired height, ensuring they are level with one another.
- Install Caps: Attach pile caps to the tops of the piles. These caps provide a flat surface for attaching the deck’s support beams.
Step 4: Attach Deck Frame
With the helical piles installed and capped, you can now proceed with building the deck frame:
- Install Beam Brackets: Secure beam brackets to the pile caps, ensuring they are properly aligned.
- Attach Beams: Place the main support beams into the brackets and secure them with bolts.
- Complete the Frame: Build the remaining deck frame according to your design plans, attaching joists and ledger boards as necessary.
Step 5: Final Inspection
After constructing the deck frame, conduct a final inspection to ensure everything is properly aligned and securely fastened. Check the stability of the deck and make any necessary adjustments before proceeding with the decking boards and finishing touches.
